Eductoret

Eductoret is a fully automatic water jet eductor made in the U.S. Its flexible flow control orifice automatically maintains a constant liquid flow regardless of variations in inlet water pressure. It features corrosion resistant materials of construction (PVC body and Buna‑N flow control inserts), a wide operating pressure range (30 to 120 psig), and a maximum operation temperature of 100°F.

NOTE: Eductorets are designed for operation with water as the operating medium. All applications should be carefully tested both for flow characteristics and compatibility of the motive liquid and educted chemicals to insure desired results. Swelling of the flow control insert in certain liquids will result in loss of flow rate accuracy.


For more information about Eductoret products, contact CIE

Eductoret Products

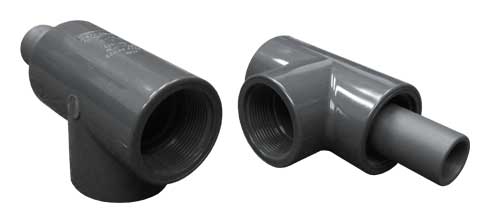

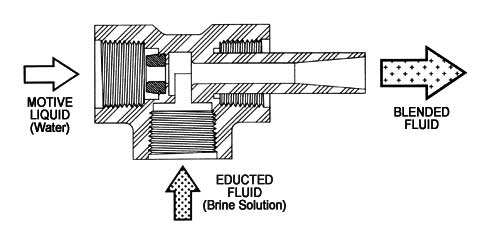

Eductoret Eductoret Flow Diagram
  • 0.5 inch NPT Pipe Size
    • 0.9-050 (0.9 GPM)
    • 1.2-050 (1.2 GPM)
    • 1.4-050 (1.4 GPM)
    • 2.0-050 (2.0 GPM)
  • 0.75 inch NPT Pipe Size
    • 2.5-075 (2.5 GPM)
    • 3.5-075 (3.5 GPM)
    • 5.0-075 (5.0 GPM)
  • 1.0 inch NPT Pipe Size
    • 7-100 (7 GPM)
    • 10-100 (10 GPM)
  • 1.5 inch NPT Pipe Size
    • 12-150 (12 GPM)
    • 15-150 (15 GPM)
    • 20-150 (20 GPM)
